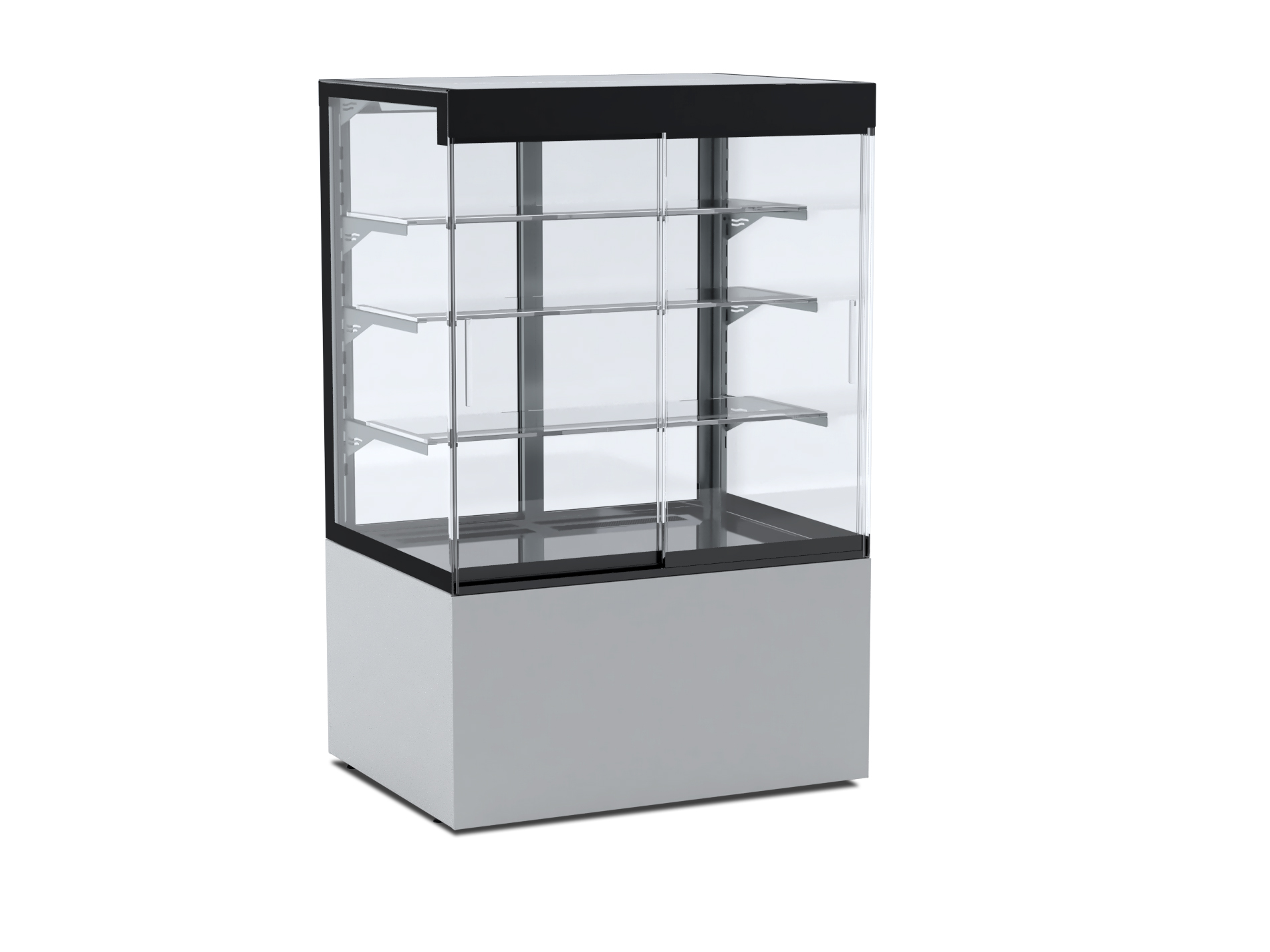

Panorama High Self-service

Model of the popular square display case belonging to the family of refrigerated confectionery display cases. This elegant display case is distinguished from the existing CUBE II design by the cleaner lines of the glass top. As standard, the model has a pull-out aggregate, which significantly simplifies the maintenance of the device. Its dimensions and design fit into the CUBE II product line.



  • Self-service
  • Transparent double, tempered glasses without color printing on the edges
  • Tempered glass shelves
  • LED lighting of the exhibition area above each shelf
  • Choice of front panel decor
  • Choice of RAL design of perimeter sheets
  • Up to 50% electricity savings thanks to the HEOSONE aggregate*



Technical details:

  • Ventilation cooling, electronic control unit
  • Voltage 230V/50Hz
  • Automatic defrosting and evaporation
  • Front & rear sliding doors
  • Quick and easy maintenance
  • Refrigerant R290

Temperature range:

+4 / +8°C (operating conditions +25°C and 60% ambient humidity)

*Heosone is CAREL’s new solution for high-efficiency units that operate on propane with DC inverter rotary compressors. The wide range of modulation is managed by the inverter, which incorporates the unit controller. The inverter is also responsible for driving the electronic expansion valve, as well as the modulating DC fans, without the need for any external modules. Other advantages of using the HEOSONE unit include better cooling performance, long service life, high energy efficiency, low noise level.

Carel logo
 PANORAMA HIGH 1000  PANORAMA HIGH 1500
Dimensions (mm) 990 x 735 x 1544 1490 x 735 x 1544
Power (W) 180 506
Display area (m2) 1,46 2,1
Weight (kg) 219 264

DATA SHEET
PANORAMA HIGH SELF-SERVICE 1000

DATA SHEET
PANORAMA HIGH SELF-SERVICE 1500

CATALOG

HEOSONE

* Heosone aggregate

Color design

PEARL

GRAY

INOX

RED

BROWN

BLACK

Possibly another RAL shade according to the customer
